RedPrime Isolated DC-DC Converter 25kW, 120A
The unit is an air-cooled, isolated 25kW/120A DC-DC bidirectional converter that can be used in many different applications.
Having numerous communication interfaces including RS485 (Modbus RTU) and CANBus, makes the integration with your control network an easy task.
Providing various modes of operation, programmable limitations and additional logic integration possibilities, it can fulfil various tasks and functions.
Having a design with fully integrated control, power units, filter bank, precharge, contactors and EMC filters balances the size and the weight of the installed components. Moreover, mounting and servicing of these usually heavy components within the cabinet becomes a much more comprehensive task.
Using the ZekaTrace™ technology (optional, ordered separately), you will be able to display the electrical characteristics and diagnose the health of the system with an unprecedented resolution for the industry. Only one such converter in your design is enough to change the way you commission the whole application.
This versatile, multi-application device provides various modes of operation, programmable limitations and additional logic integration possibilities and it can easily be used into the following applications:
Energy Storage, Peak Shaving & Load Balancing
Microgrids & Smartgrids
High-Voltage, High-Power Battery & Supercaps Charger-Discharger
Electric Buses DC Charging Stations
Electric Vehicles Fast DC Charging Stations
Data Centers & UPS
|DC side A voltage range||10 - 260 Vdc|
|Maximum DC current side A||120 Adc|
|DC side B voltage range||10 - 800 Vdc|
|Maximum DC current side B||60 Adc|
|Integrated components||Integrated precharge|
Integrated EMC filtering
|Energy transfer direction||Unidirectional (A to B )|

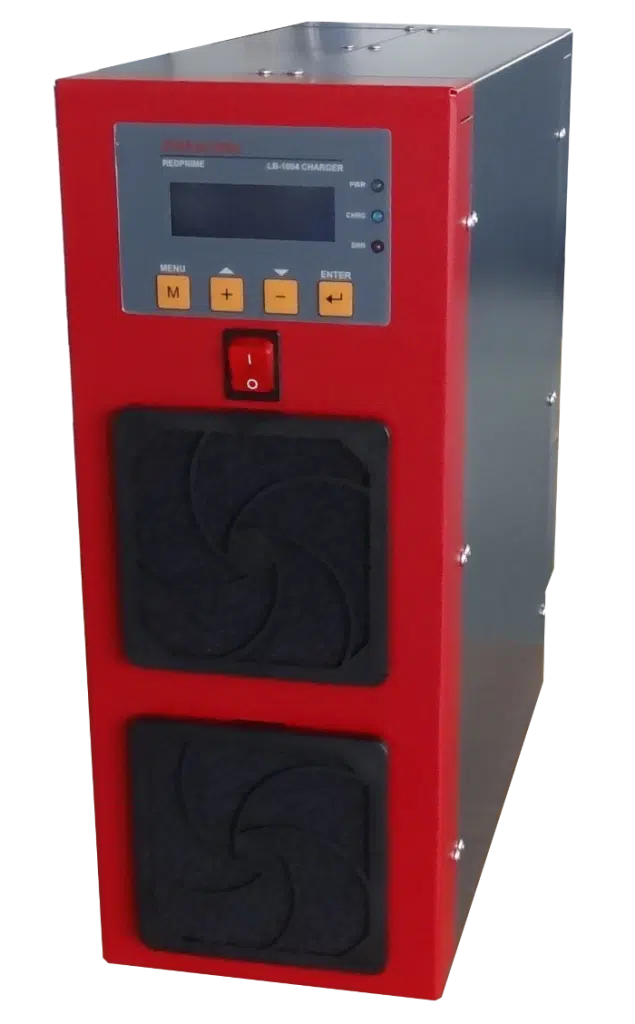

|Mechanical dimensions (W x L x H)||Vertical mount 432 x 440.5 x 177 mm version|

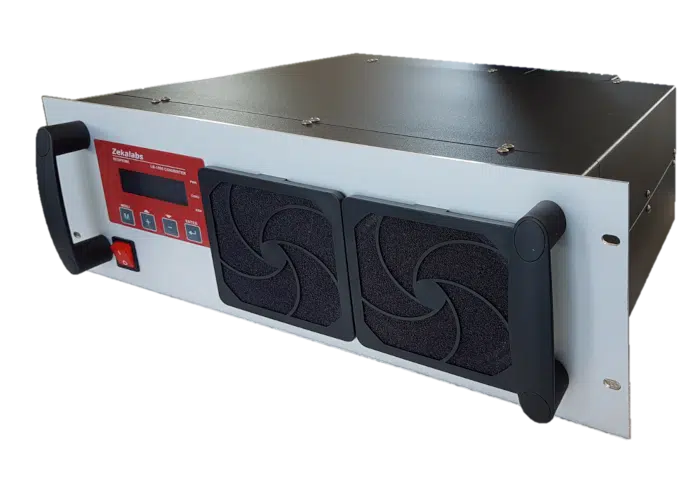

Rack mountable 19” 4U version
|Communication interfaces||MODBUS RTU over RS485
CAN (custom protocol)
